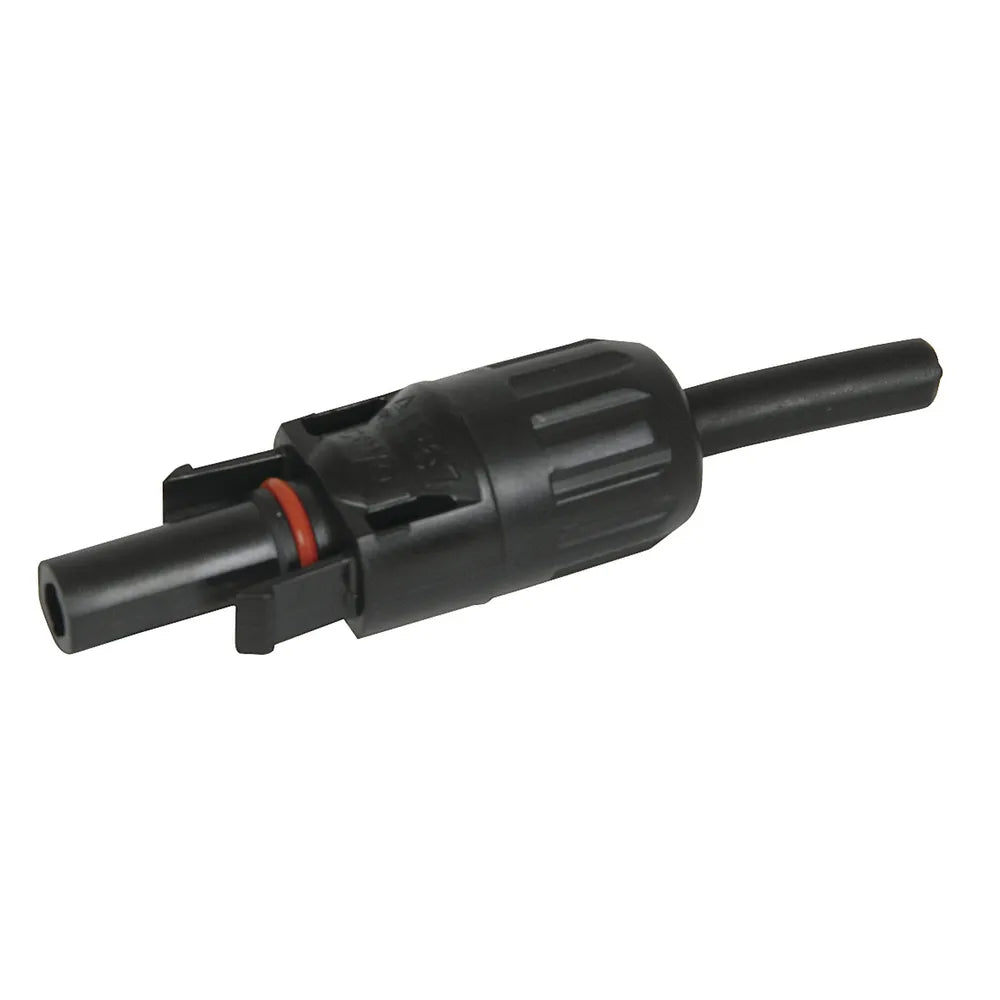

Waterproof Solar Power PV Connector 4mm Male MC4

These photovoltaic (PV) system MC4 connectors are ideally suited to harsh installations such as solar panel arrays and other permanent outdoor applications. When matched with our solar power cables WH-3120 and WH-3122, you can leave your cabling out in the open with the knowledge that you will never have a bad connection or an oxidised power cable. Both panel mounting and in-line connectors are available to suit a wide range of system applications:
Specifications.
• Rated current: 30A at 70°C, 25A at 85°C
• Contact resistance: <5 milliohms
• Temperature range: -40 - 90°C
• TUV certification: 2 PfG 1161/01.06

Assembly Tool: TH-1930
Suitable crimping tools: TH-1834 or TH-1950
